Solenoid Operated Valves

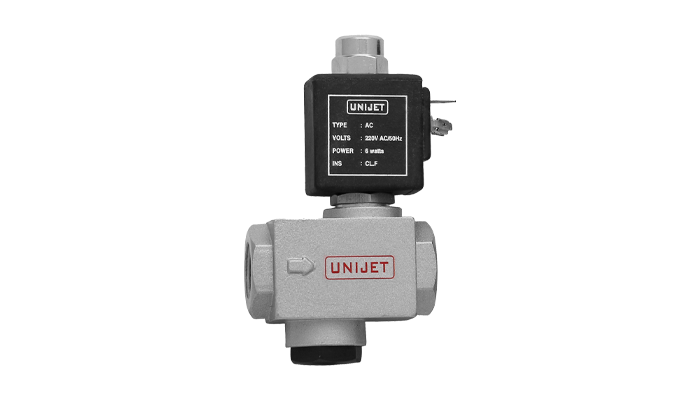

Online Valve
Unijet Online valves are Direct Acting 2/2 Way valves. These valves are available up to 35 bar working pressure. The standard valves are available in Aluminium body for 0-10 bar. High pressure solenoid valves come with Brass body. These valves are suitable for Auto drain purpose with internal mesh to prevent dust entering the valves. These valves are well recognized in the market.
ENQUIRE NOWSpecifications
| TYPE | 2/2NC | ||||||
|---|---|---|---|---|---|---|---|
| PORT SIZE (IN / OUT) | 1/2" BSP | ||||||
| ORIFICE (NM) | 0.8 | 2 | 3 | 4 | 5 | ||
| Flow Rate at 6 bar (lpm) | 20 | 140 | 250 | 350 | 440 | ||
| Pressure Rating | 0.35 bar | 0-10bar | |||||
| Model Number | VOLT (V) ±10% |
220V AC | M12810A | M12812A | M12814A | C12815A | C12816A |
| 24V DC | M12810W | M12812W | NIL | NIL | NIL | ||
| 12V DC | M12810R | M12812R | NIL | NIL | NIL | ||
| TEMPERATURE RANGE | -20°C to 80°C |
||||||
| MOC | Brass | Aluminium | |||||
| SEALS | NITRILE | ||||||
| COIL TYPE | ENCAPSULATED COIL (M) / CUP COL (C) | ||||||
| POWER CONSUMPTION (WATT) | 220V AC | 8 (C) / 6 (M) | |||||
| 24V DC | 8 (M) | ||||||
| 12V DC | 12 (C) / 9 (M) | ||||||
| CLASS OF INSULATION | CLASS F | ||||||
| DUTY | CONTINUOUS | ||||||
| TYPE OF COIL PROTECTION | IP65 | ||||||

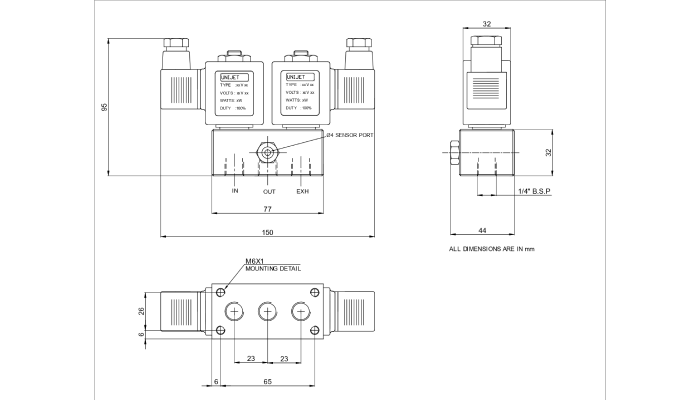

Basic Dimensions
