Pilot Operated Valve

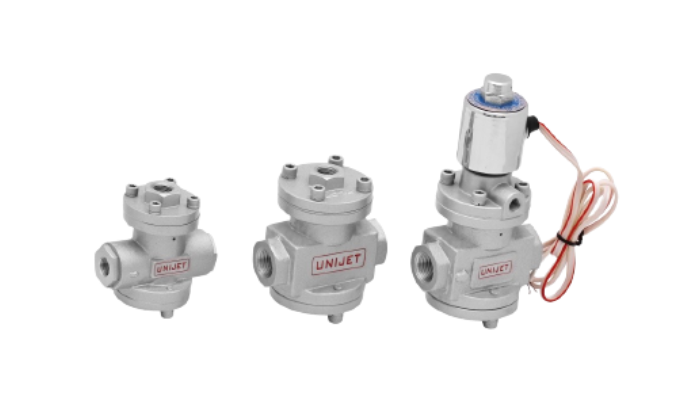

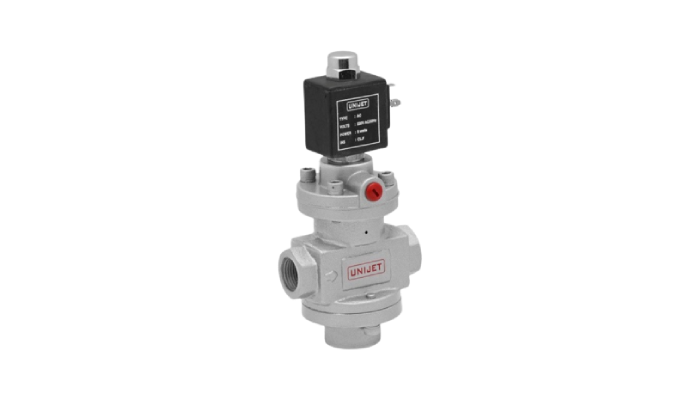

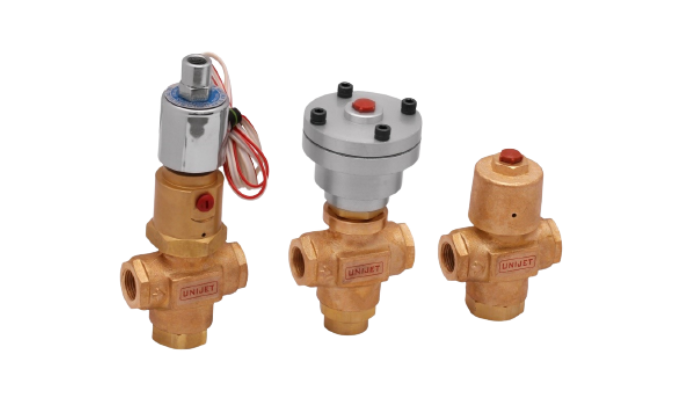

Unijet poppet valves are pilot operated with high flow, spring return, direction control valve. The rugged, simple design eliminates metal to metal contact ensuring long life and trouble free operation. High pressure 1:1 and 10:1 pilot configuration is available in 1/2" BSP for 35 bar.
ENQUIRE NOWModel & Specifications
| TYPE | 1/2" (HP 1:1) | 1/2" (HP 1:10) | 1/2" | 1" | 1" - D | |
|---|---|---|---|---|---|---|
| MODEL NUMBER | NC | HPPV 10 G10-1:1 | HPPV 10 G10-1:10 | PPV 10 G10 | PPV 10 G22 | NIL |
| NO | NIL | PPV 15 G10 | NIL | NIL | ||
| 3 WAY | NIL | PPV 20 G10 | NIL | PPV 20 G22-D | ||
| ORIFICE (NW) | 13.5 | 9 | 14 | 25 | ||
| PRESSURE RATING | 0-35bar | 0-16bar | ||||
| FLOW RATE (Cv) | 3.18 | 10.58 | ||||
| TEMPERATURE RANGE | -20ºC to 80ºC | |||||
| MOC | GUN METAL | ALUMINIUM | ||||
| SEALS | NITRILE / VITON (ON REQUEST) | |||||

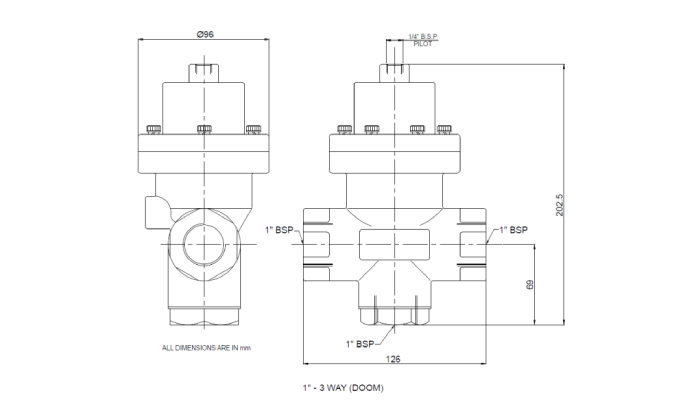

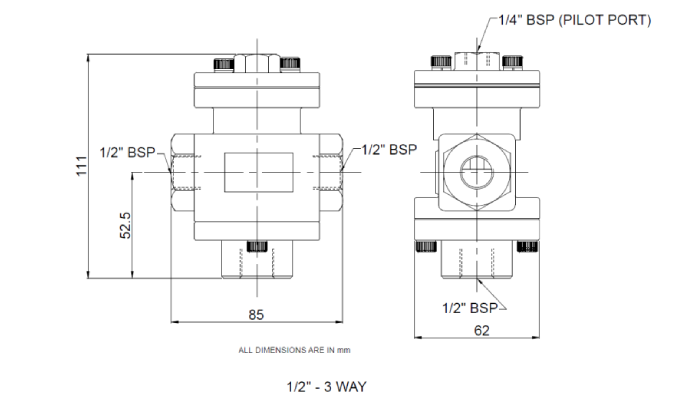

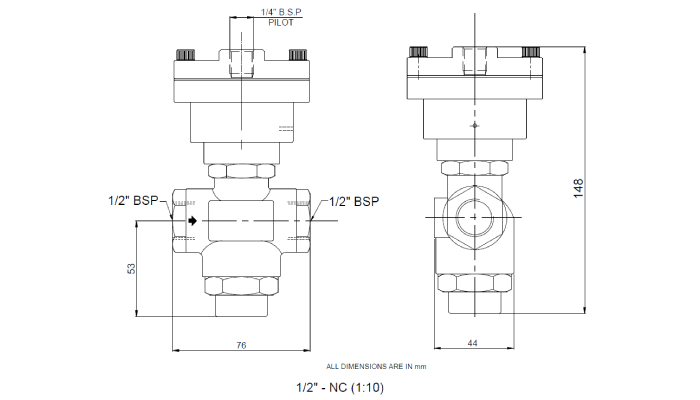

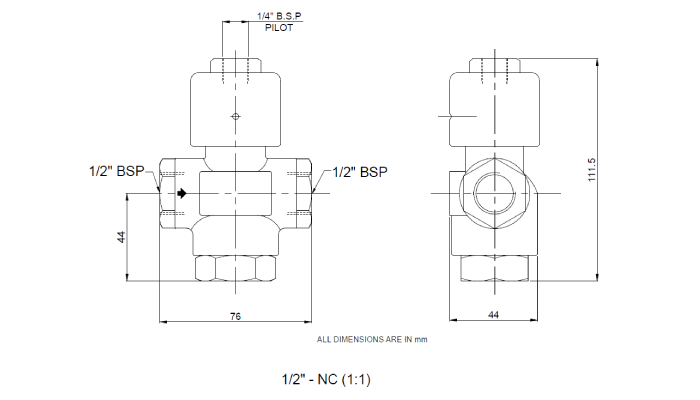

Basic Dimensions
| Dimensions | 3/4" | 1-1/2" | 1" | 2" | 2-1/2" | 3" |
|---|---|---|---|---|---|---|
| A | 195 | 195 | 220 | 225 | 320 | 320 |
| B | 57.5 | 57.5 | 76 | 77.5 | 100 | 100 |
| C | 126 | 126 | 148 | 176 | 240 | 240 |
| D | 96 | 96 | 121 | 154 | 180 | 180 |
| E | 3/4" BSP | 1" BSP | 1-1/2" BSP | 2" BSP | 2-1/2" BSP | 3" BSP |
| F | 3/4" BSP | 1" BSP | 1-1/2" BSP | 2" BSP | 2-1/2" BSP | 3" BSP |
| G* | 3/4" BSP | 1" BSP | 1-1/2" BSP | 2" BSP | 2-1/2" BSP | 3" BSP |
| H | 1/4" BSP | 1/4" BSP | 1/4" BSP | 1/4" BSP | 1/4" BSP | 1/4" BSP |
Other Products
Pilot Valves
Unijet poppet valves are pilot operated with high flow, spring return, direction control valve..
VIEW MORE

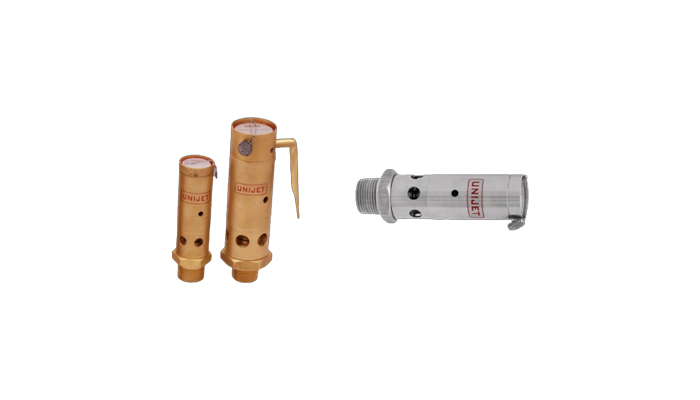

Safety Valve
UNIJET Safety valve or pressure relief valve is an automatic pressure reliving device
VIEW MORE

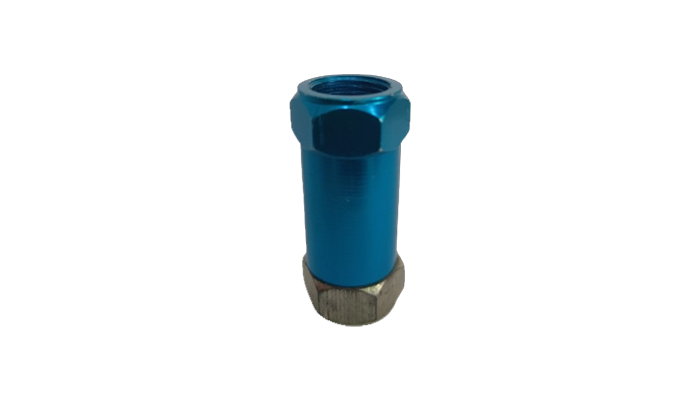

Non-Return Valve
